PRODUCT | AC switch-disconnectors | S5 | 3P-4P | 125A – 2000A

S5 | 3P-4P | 125A – 2000A

Description

Switch – disconnectors on-load available from 125A to 2000A in 3P & 4P versions (under request). Rated breaking current of up to 8 times the rated operational current, with ability to establish and support short circuit currents up to 100kA.

Uninterrupted duties in extreme tropic and polar conditions, as well as the polluted environment of any industrial process. Protection against accidental over voltages in equipment’s connected between phase and neutral (our standard 4P) with advanced switched neutral pole (early make – late break).

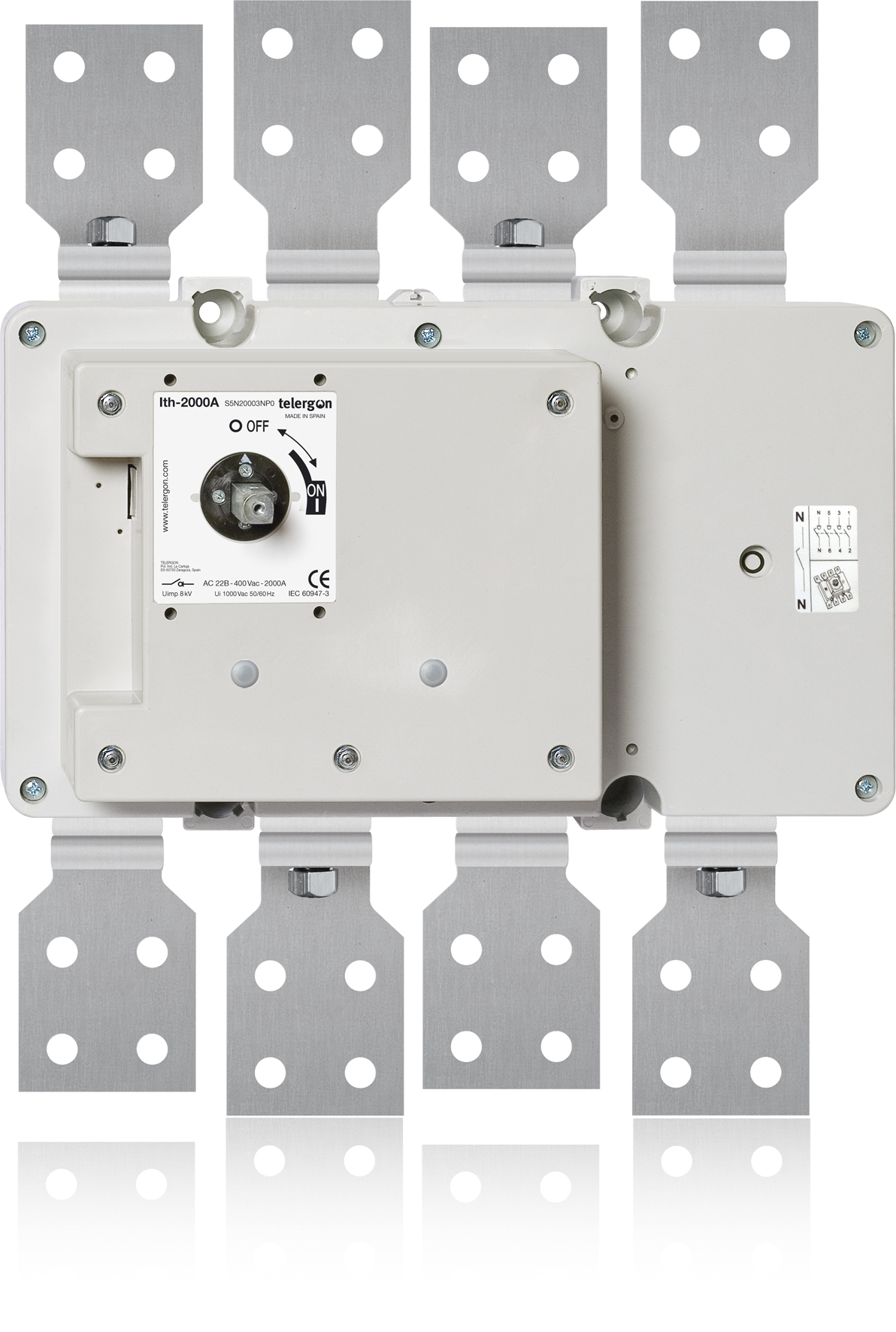

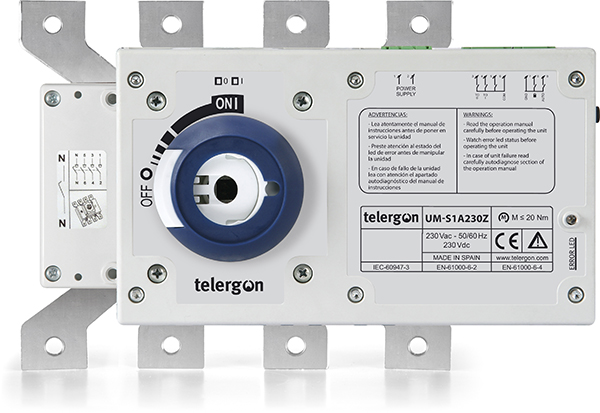

Available with manual or motorized operation from 250 A up to 1800 A, and from 2000A up to 3150A (S5N series)

Codes

Direct Handle

Amp Size 3P 4P
160 0 S5-01603PSD00 S5-01604PSD00
200 0 S5-02003PSD00 S5-02004PSD00
250 0 S5-02503PDD00 S5-02504PDD00
315 1 S5-03153PRD00 S5-03154PRD00
400 1 S5-04003PCD00 S5-04004PCD00
630 2 S5-06303PJD00 S5-06304PJD00
800 2 S5-08003PND00 S5-08004PND00
1000 3 S5-010003PCD00 S5-010004PCD00
1250 3 S5-012503PCD00 S5-012504PCD00
1600 4 S5-016003PSD00 S5-016004PSD00
1800 4 S5-018003PSD00 S5-018004PSD00
2000 4 S5-020003PSD00 S5-020004PSD00

Panel Handle

Amp Size 3P 4P
125 0 S5-01253PS400 S5-01254PS400
160 0 S5-01603PS400 S5-01604PS400
200 0 S5-02003PS400 S5-02004PS400
250 0 S5-02503PD400 S5-02504PD400
315 1 S5-03153PR400 S5-03154PR400
400 1 S5-04003PC400 S5-04004PC400
630 2 S5-06303PJ400 S5-06304PJ400
800 2 S5-08003PR400 S5-08004PR400
1000 3 S5-010003PC400 S5-010004PC400
1250 3 S5-012503PS400 S5-012504PS400
1600 4 S5-016003PS400 S5-016004PS400
1800 4 S5-018003PS400 S5-018004PS400
