S3 | Compact Switch-Disconnectors | 16A – 125A

Description

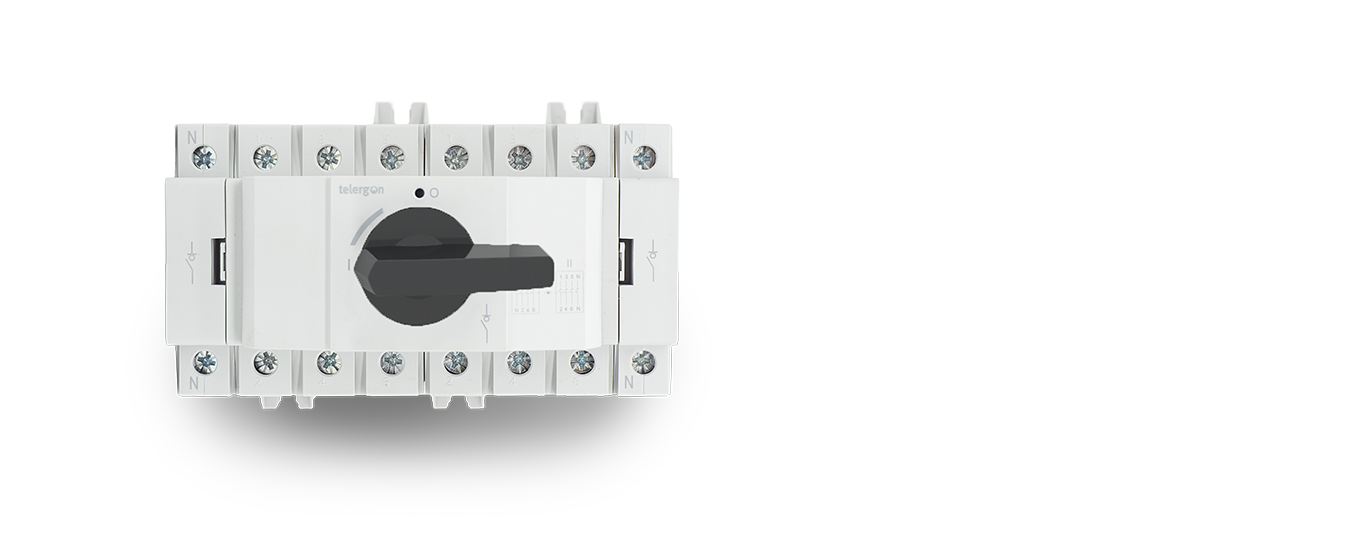

S3 Compact and multipole AC switches, designed for industrial applications. They are composed of 3 different ratings, ranging from 16A to 125A, in 3P, 4P, 6P and 8P versions.

It has 3 types of mounting: DIN rail mounting, panel mounting and door interlock. It is compatible with a wide range of accessories such as terminal shrouds, shaft extension, add on pole or auxiliary contact. The S3 compact switches have four different types of handles: direct lockable, panel without lock, panel lockable, emergency panel lockable or direct lockable.

The S3 series of AC compact and multipole switches are designed according to IEC/EN 60947-3 specifications for use in industrial applications. The different models of this series offer various fixing possibilities, thus solving the most common needs for the operation of machines and switchgear in switchboards.

DIN-Rail Mounting

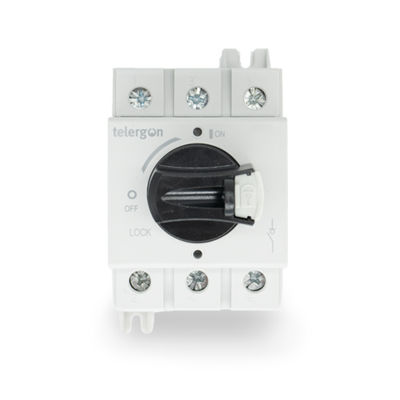

Size	Amp	Handle	3P	4P
000	16	1	S3-00163P1DB	S3-00164A1DB
000	20	1	S3-00203P1DB	S3-00204A1DB
000	25	1	S3-00253P1DB	S3-00254A1DB
000	32	1	S3-00323P1DB	S3-00324A1DB
000	40	1	S3-00403P1DB	S3-00404A1DB
00	63	1	S3-00633P1DB	S3-00634A1DB
00	80	1	S3-00803P1DB	S3-00804A1DB
0	100	1	S3-01003P1DB	S3-01004A1DB
0	125	1	S3-01253P1DB	S3-01254A1DB

Size	Amp	Handle	3P	4P
000	16	5	S3-00163P5DB	S3-00164A5DB
000	20	5	S3-00203P5DB	S3-00204A5DB
000	25	5	S3-00253P5DB	S3-00254A5DB
000	32	5	S3-00323P5DB	S3-00324A5DB
000	40	5	S3-00403P5DB	S3-00404A5DB
00	63	5	S3-00633P5DB	S3-00634A5DB
00	80	5	S3-00803P5DB	S3-00804A5DB
0	100	5	S3-01003P5DB	S3-01004A5DB
0	125	5	S3-01253P5DB	S3-01254A5DB

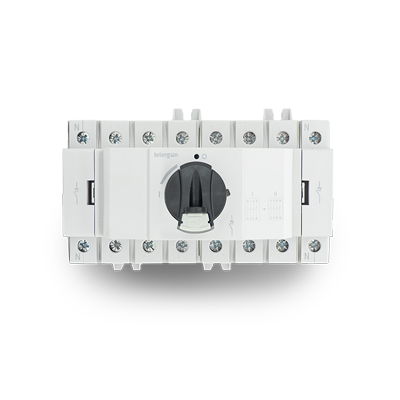

Size	Amp	6P	8P
00	63	S3M00636P1DB	S3M00638P1DB
00	80	S3M00806P1DB	S3M00808P1DB

Panel Mounting

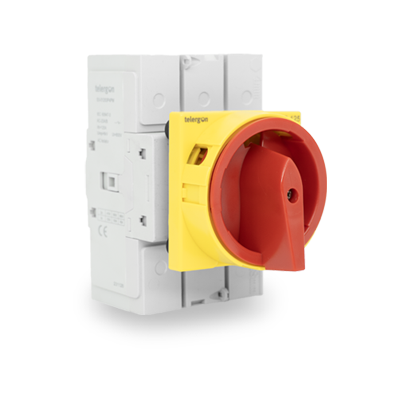

Size	Amp	Handle	3P	4P
000	16	4	S3-00163P4PM	S3-00164A4PM
000	20	4	S3-00203P4PM	S3-00204A4PM
000	25	4	S3-00253P4PM	S3-00254A4PM
000	32	4	S3-00323P4PM	S3-00324A4PM
000	40	4	S3-00403P4PM	S3-00404A4PM
00	63	4	S3-00633P4PM	S3-00634A4PM
00	80	4	S3-00803P4PM	S3-00804A4PM
0	100	4	S3-01003P4PM	S3-01004A4PM
0	125	4	S3-01253P4PM	S3-01254A4PM

Size	Amp	Handle	3P	4P
000	16	3	S3-00163P3PM	S3-00164A3PM
000	20	3	S3-00203P3PM	S3-00204A3PM
000	25	3	S3-00253P3PM	S3-00254A3PM
000	32	3	S3-00323P3PM	S3-00324A3PM
000	40	3	S3-00403P3PM	S3-00404A3PM
00	63	3	S3-00633P3PM	S3-00634A3PM
00	80	3	S3-00803P3PM	S3-00804A3PM
0	100	3	S3-01003P3PM	S3-01004A3PM
0	125	3	S3-01253P3PM	S3-01254A3PM

Size	Amp	Handle	3P	4P
000	16	2	S3-00163P2PM	S3-00164A2PM
000	20	2	S3-00203P2PM	S3-00204A2PM
000	25	2	S3-00253P2PM	S3-00254A2PM
000	32	2	S3-00323P2PM	S3-00324A2PM
000	40	2	S3-00403P2PM	S3-00404A2PM
00	63	2	S3-00633P2PM	S3-00634A2PM
00	80	2	S3-00803P2PM	S3-00804A2PM
0	100	2	S3-01003P2PM	S3-01004A2PM
0	125	2	S3-01253P2PM	S3-01254A2PM

Door Interlock

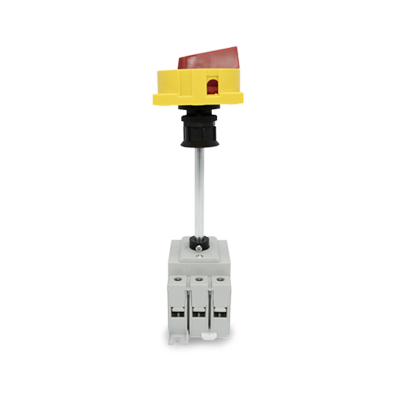

Size	Amp	Handle	3P	4P
000	16	4	S3-00163P4DC	S3-00164A4DC
000	20	4	S3-00203P4DC	S3-00204A4DC
000	25	4	S3-00253P4DC	S3-00254A4DC
000	32	4	S3-00323P4DC	S3-00324A4DC
000	40	4	S3-00403P4DC	S3-00404A4DC
00	63	4	S3-00633P4DC	S3-00634A4DC
00	80	4	S3-00803P4DC	S3-00804A4DC
0	100	4	S3-01003P4DC	S3-01004A4DC
0	125	4	S3-01253P4DC	S3-01254A4DC

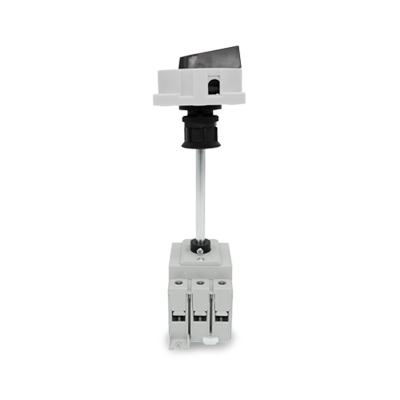

Size	Amp	Handle	3P	4P
000	16	3	S3-00163P3DC	S3-00164A3DC
000	20	3	S3-00203P3DC	S3-00204A3DC
000	25	3	S3-00253P3DC	S3-00254A3DC
000	32	3	S3-00323P3DC	S3-00324A3DC
000	40	3	S3-00403P3DC	S3-00404A3DC
00	63	3	S3-00633P3DC	S3-00634A3DC
00	80	3	S3-00803P3DC	S3-00804A3DC
0	100	3	S3-01003P3DC	S3-01004A3DC
0	125	3	S3-01253P3DC	S3-01254A3DC

Size	Amp	Handle	3P	4P
000	16	2	S3-00163P2DC	S3-00164A2DC
000	20	2	S3-00203P2DC	S3-00204A2DC
000	25	2	S3-00253P2DC	S3-00254A2DC
000	32	2	S3-00323P2DC	S3-00324A2DC
000	40	2	S3-00403P2DC	S3-00404A2DC
00	63	2	S3-00633P2DC	S3-00634A2DC
00	80	2	S3-00803P2DC	S3-00804A2DC
0	100	2	S3-01003P2DC	S3-01004A2DC
0	125	2	S3-01253P2DC	S3-01254A2DC
