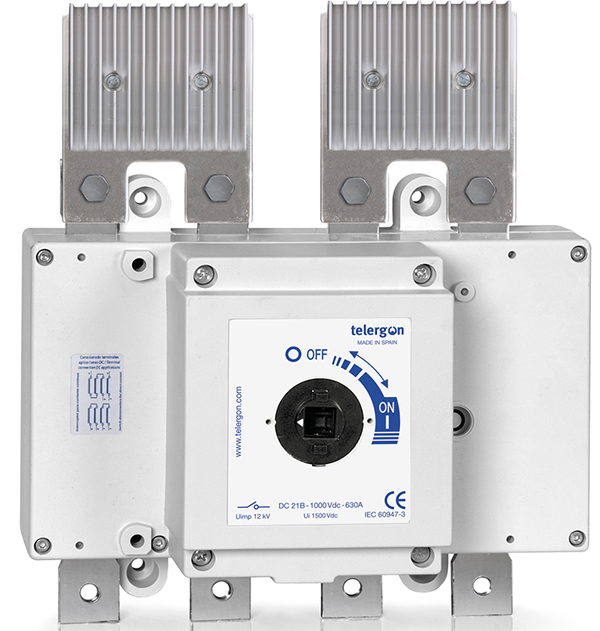

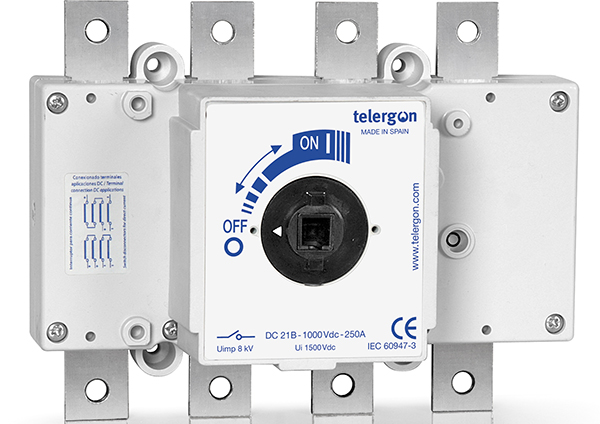

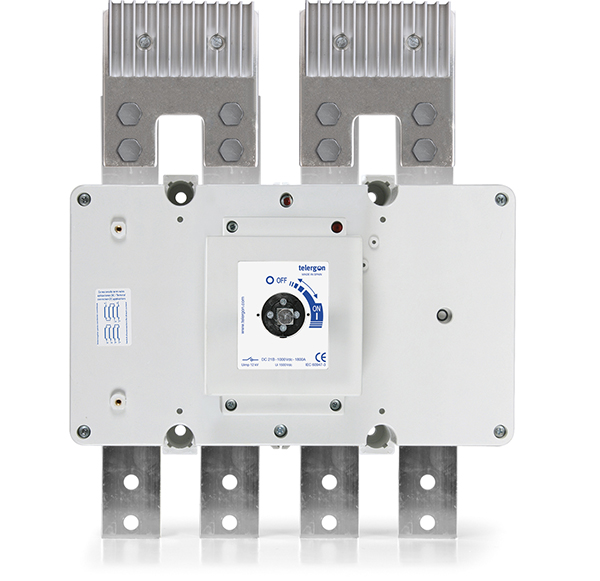

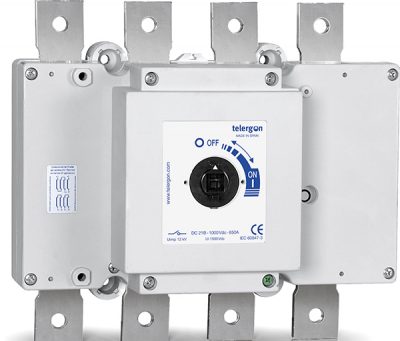

S5 & S5N | 100A – 3150A | 1000Vdc
Description

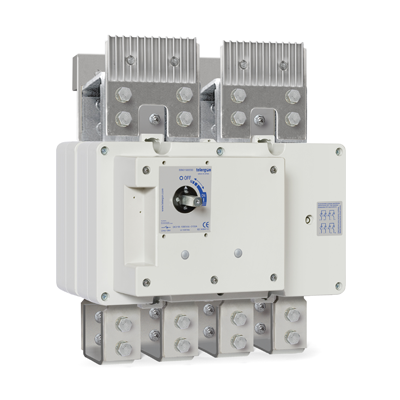

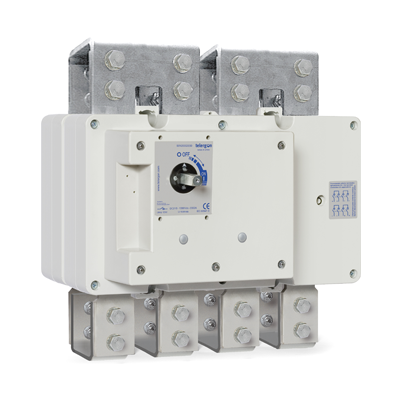

DC switch-disconnectors available from 100A up to 2000A at 1000Vdc, in 4P version, and from 2000A up to 3150A (S5N series) in 4P+4P versions
Direct Handle
| Amp. | Size | 4P |
| 100 | 1 | S5-01254PR008 |
| 125 | 1 | S5-D1254PR008 |
| 160 | 1 | S5-02004PR008 |
| 200 | 1 | S5 -D2004PR008 |
| 250 | 1 | S5-03154PR008 |
| 315 | 1 | S5-D3154PR009 |
| 400 | 1 | S5-04004PC009 |
| 500 | 2 | S5-06304PR008 |
| 630 | 2 | S5-06302ER009 |
| 850 | 3 | S5-12504PC008 |
| 1000 | 3 | S5-10002EC008 |
| 1250 | 3 | S5-12502EC008 |
| 1800 | 4 | S5-18002ESP |
| 1600 | 4 | S5N-16004AS002 |
Panel Handle
| Amp. | Size | 4P |
| 100 | 1 | S5-01254PR007 |
| 125 | 1 | S5-D1254PR007 |
| 160 | 1 | S5-02004PR007 |
| 200 | 1 | S5 -D2004PR007 |
| 250 | 1 | S5-03154PR007 |
| 315 | 1 | S5-D3154PR028 |
| 400 | 1 | S5-04004PC028 |
| 500 | 2 | S5-06304PR007 |
| 630 | 2 | S5-06302ER028 |
| 850 | 3 | S5-12504PC006 |
| 1000 | 3 | S5-10002EC007 |
| 1250 | 3 | S5-12502EC007 |
