PRODUCT | Rotary cam switches | T | Cam Switches | 6A – 250A

T | Cam Switches | 6A – 250A

Description

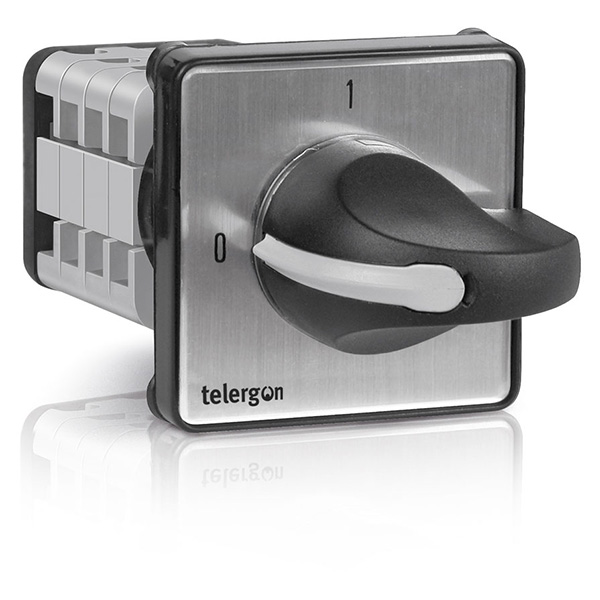

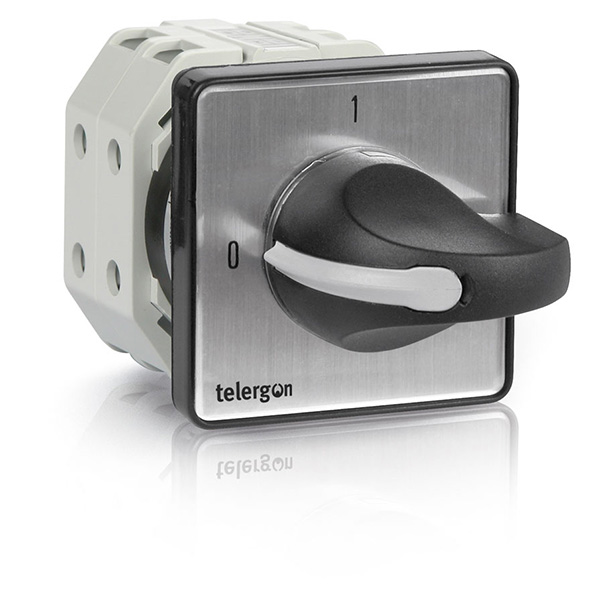

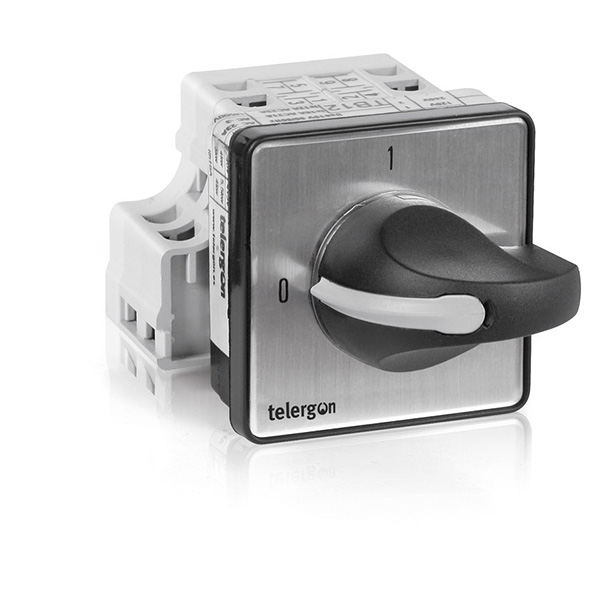

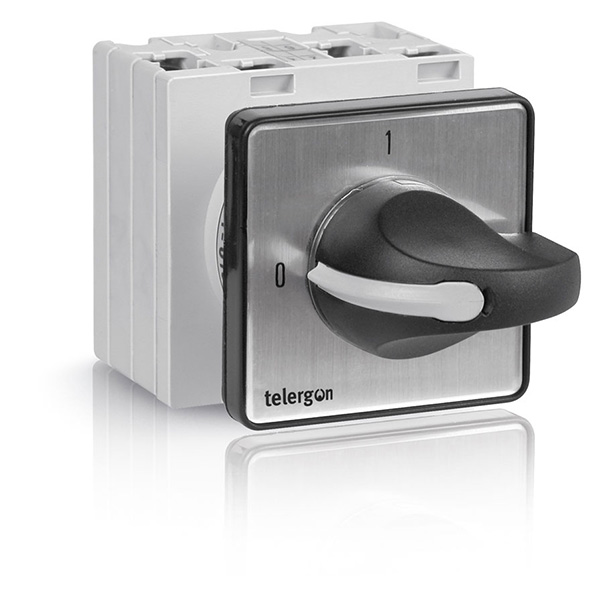

Cam switches available from 6A to 250A (under request) in several construction types (series), different types of fixations (panel mounting, quick fixing Ø 22, base mounting, etc.) inside a wide range of sizes, currents, and extensive range of accessories. They are manufactured according to IEC / EN 60947-3 standard, CSA 22.2-14, UL508.

To view the codes corresponding to each scheme or type of product, download the Product Information.

Codes

ON-OFF Switches

Amp 1P 2P 3P 4P
12A TP-001000010E1N1 TP-001000011E1N1 TP-001000012E1N1 TP-001000013E1N1
16A T-0001200010E1N1 T-0001200011E1N1 T-0001200012E1N1 T-0001200013E1N1
25A T-0002000010E1N1 T-0002000011E1N1 T-0002000012E1N1 T-0002000013E1N1
32A T-0002500010E1N1 T-0002500011E1N1 T-0002500012E1N1 T-0002500013E1N1
50A T-0004000010E1N1 T-0004000011E1N1 T-0004000012E1N1 T-0004000013E1N1
80A T-0006300010E1N1 T-0006300011E1N1 T-0006300012E1N1 T-0006300013E1N1
125A T-0010000010E1N1 T-0010000011E1N1 T-0010000012E1N1 T-0010000013E1N1
200A T-0017500010E1N1 T-0017500011E1N1 T-0017500012E1N1 T-0017500013E1N1
250A T-0025000010E1N1 T-0025000011E1N1 T-0025000012E1N1 T-0025000013E1N1

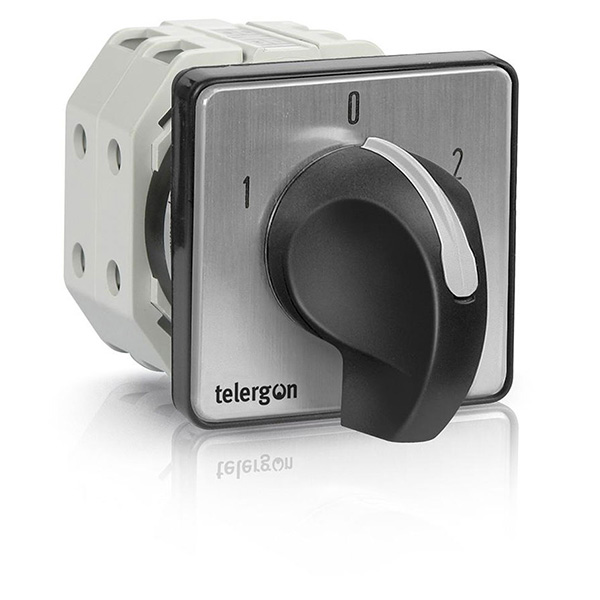

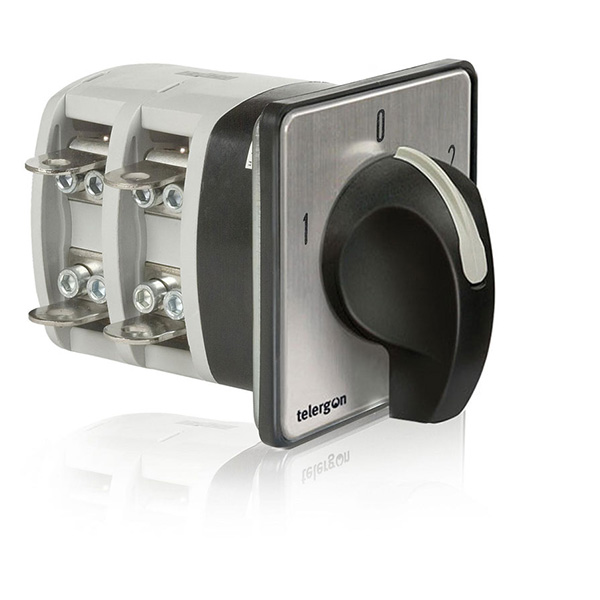

Changeover switches with center “OFF” 1-0-2

Amp 1P 2P 3P 4P
12A TP-001000400E1N1 TP-001000401E1N1 TP-001000402E1N1 TP-001000403E1N1
16A T-0001200400E1N1 T-0001200401E1N1 T-0001200402E1N1 T-0001200403E1N1
25A T-0002000400E1N1 T-0002000401E1N1 T-0002000402E1N1 T-0002000403E1N1
32A T-0002500400E1N1 T-0002500401E1N1 T-0002500402E1N1 T-0002500403E1N1
50A T-0004000400E1N1 T-0004000401E1N1 T-0004000402E1N1 T-0004000403E1N1
80A T-0006300400E1N1 T-0006300401E1N1 T-0006300402E1N1 T-0006300403E1N1
125A T-0010000400E1N1 T-0010000401E1N1 T-0010000402E1N1 T-0010000403E1N1
200A T-0017500400E1N1 T-0017500401E1N1 T-0017500402E1N1 T-0017500403E1N1
250A T-0025000400E1N1 T-0025000401E1N1 T-0025000402E1N1 T-0025000403E1N1

Changeover switches without “OFF” 1-2

Amp 1P 2P 3P 4P
12A TP-001000400E1N1 TP-001000401E1N1 TP-001000402E1N1 TP-001000403E1N1
16A T-0001200400E1N1 T-0001200401E1N1 T-0001200402E1N1 T-0001200403E1N1
25A T-0002000400E1N1 T-0002000401E1N1 T-0002000402E1N1 T-0002000403E1N1
32A T-0002500400E1N1 T-0002500401E1N1 T-0002500402E1N1 T-0002500403E1N1
50A T-0004000400E1N1 T-0004000401E1N1 T-0004000402E1N1 T-0004000403E1N1
80A T-0006300400E1N1 T-0006300401E1N1 T-0006300402E1N1 T-0006300403E1N1
125A T-0010000400E1N1 T-0010000401E1N1 T-0010000402E1N1 T-0010000403E1N1
200A T-0017500400E1N1 T-0017500401E1N1 T-0017500402E1N1 T-0017500403E1N1
250A T-0025000400E1N1 T-0025000401E1N1 T-0025000402E1N1 T-0025000403E1N1
