PRODUCT | AC Compact switch-disconnectors for industrial applications | S3 | Enclosed Compact Switches | 16A – 125A

S3 | Enclosed Compact Switches | 16A – 125A

Description

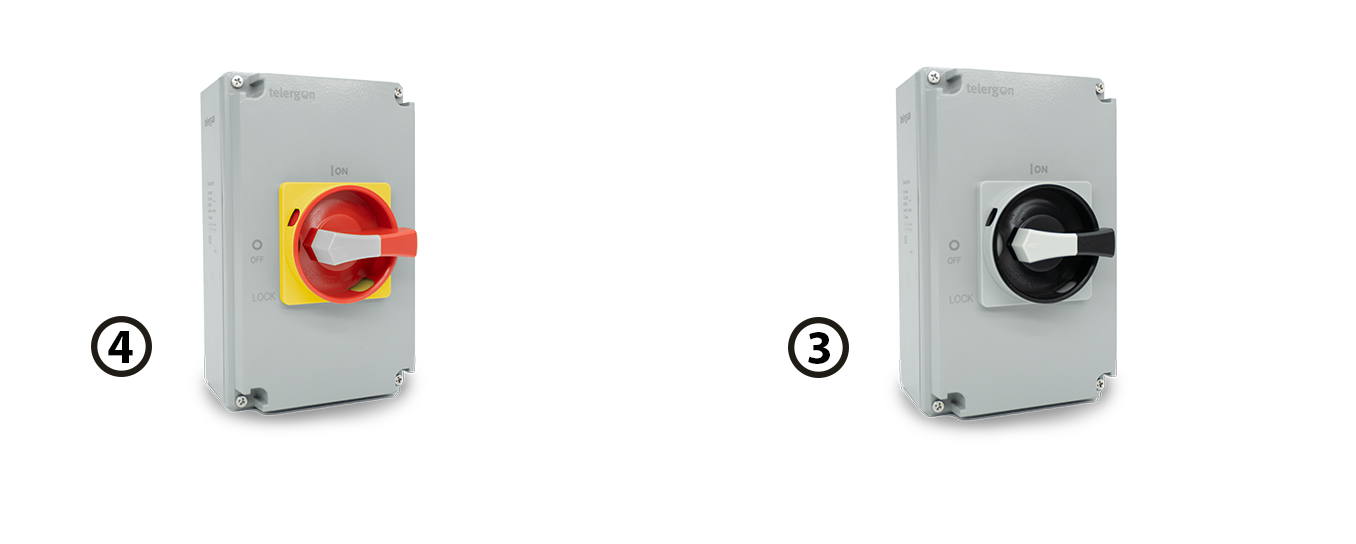

Enclosed plastic or aluminium solutions. They are available from 16A to 125A, in 3P, 4P versions. They are specially designed for use in industrial applications, according to IEC/EN 60947-3 specifications. They have two different types of handle; black lockable handle and yellow/red lockable emergency handle. The enclosure has a protection category of IP66.

Codes

Plastic

Size Amp Handle 3P 4P
000 16 4 S3-00163P4EP S3-00164A4EP
000 20 4 S3-00203P4EP S3-00204A4EP
000 25 4 S3-00253P4EP S3-00254A4EP
000 32 4 S3-00323P4EP S3-00324A4EP
000 40 4 S3-00403P4EP S3-00404A4EP
00 63 4 S3-00633P4EP S3-00634A4EP
00 80 4 S3-00803P4EP S3-00804A4EP
0 100 4 S3-01003P4EP S3-01004A4EP
0 125 4 S3-01253P4EP S3-01254A4EP

Size Amp Handle 3P 4P
000 16 3 S3-00163P3EP S3-00164A3EP
000 20 3 S3-00203P3EP S3-00204A3EP
000 25 3 S3-00253P3EP S3-00254A3EP
000 32 3 S3-00323P3EP S3-00324A3EP
000 40 3 S3-00403P3EP S3-00404A3EP
00 63 3 S3-00633P3EP S3-00634A3EP
00 80 3 S3-00803P3EP S3-00804A3EP
0 100 3 S3-01003P3EP S3-01004A3EP
0 125 3 S3-01253P3EP S3-01254A3EP

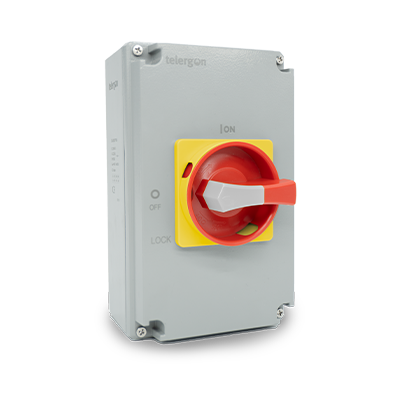

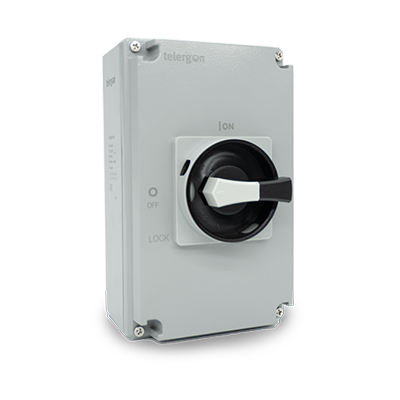

Aluminium

Size Amp Handle 3P 4P
000 16 4 S3-00163P4EA S3-00164A4EA
000 20 4 S3-00203P4EA S3-00204A4EA
000 25 4 S3-00253P4EA S3-00254A4EA
000 32 4 S3-00323P4EA S3-00324A4EA
000 40 4 S3-00403P4EA S3-00404A4EA
00 63 4 S3-00633P4EA S3-00634A4EA
00 80 4 S3-00803P4EA S3-00804A4EA

Size Amp Handle 3P 4P
000 16 3 S3-00163P3EA S3-00164A3EA
000 20 3 S3-00203P3EA S3-00204A3EA
000 25 3 S3-00253P3EA S3-00254A3EA
000 32 3 S3-00323P3EA S3-00324A3EA
000 40 3 S3-00403P3EA S3-00404A3EA
00 63 3 S3-00633P3EA S3-00634A3EA
00 80 3 S3-00803P3EA S3-00804A3EA
