PRODUCT | DC Compact Switch-Disconnectors | F1 | Compact Switch-disconnector | 32A | 1500Vdc

F1 | Compact Switch-disconnector | 32A | 1500Vdc

Description

F1 DC compact switch-disconnector are available in different connection schemes of 2P and 4P for 800-1000-1200-1500Vdc. This series has 5 different mounting types: DIN rail mounting, panel mounting, door interlock, plastic enclosure and aluminum enclosure. In addition, they have five different types of handle: Direct lockable,  external lockable black, external lockable red-yellow. These modular switch-disconnectors are designed according to IEC/EN60947-3 certification and a category of use DC-PV1 and DC-PV2.

To get more information, download the catalogue.

Codes

DIN Rail

Amp Handle Pole Code
32 1 2P F1-00322P1DB
32 1 4B F1-00324B1DB

Panel Mounting

Amp Handle Pole Code
32 4 2P F1-00322P4PM
32 4 4B F1-00324B4PM
32 3 2P F1-00322P3PM

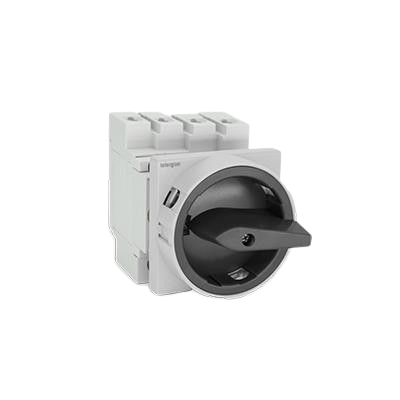

32 3 4B F1-00324B3PM
32 2 2P F1-00322P2PM
32 2 4B F1-00324B2PM

Door Interlock

Amp Handle Pole Code
32 4 2P F1-00322P4DC
32 4 4B F1-00324B4DC
32 3 2P F1-00322P3DC
32 3 4B F1-00324B3DC
32 2 2P F1-00322P2DC
32 2 4B F1-00324B2DC
