PRODUCT | CRS | Firefighter Safety Switch

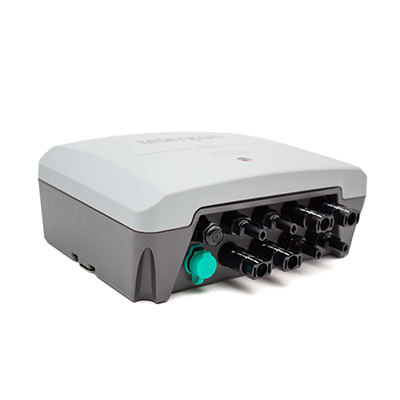

CRS | Firefighter Safety Switch

Description

The Firefighter Safety Switch is the perfect solution to protect rooftop solar installation in case of emergency or fire. A quick shutdown device, capable of reaching a maximum circuit voltage of 1500 Vdc and cutting current up to 50A. It includes a combination of strings of the photovoltaic panels and a rapid shutdown switch.

  • Suitable up to 5 circuits/strings
  • Maximum circuit current 50A
  • Maximum cricuit voltage 1500vdc
  • Protection degree IP66
  • Poles: from 2P to 10P
  • Easy installation
  • Waterproof vent valve to avoid condensation inside the enclosure
  • Built in temperature sensor that allows automatic shut down of the system when reaching 70ºC inside the enclosure



Codes

Amp. Size Strings Code
13 1 1 CRS001302P0
20 1 1 CRS002002P0
25 1 1 CRS002502P0
40 1 1 CRS004002P0
50 1 1 CRS005002P0
13 1 2 CRS001304P0
20 1 2 CRS002004P0
25 1 2 CRS002504P0
40 1 2 CRS004004P0
50 1 2 CRS005004P0
13 2 3 CRS001306P0
20 2 3 CRS002006P0
25 2 3 CRS002506P0
40 2 3 CRS004006P0
50 2 3 CRS005006P0
13 2 4 CRS001308P0
20 2 4 CRS002008P0
25 2 4 CRS002508P0
40 2 4 CRS004008P0
50 2 4 CRS005008P0
13 2 5 CRS001310P0
20 2 5 CRS002010P0
25 2 5 CRS002510P0
40 2 5 CRS004010P0
50 2 5 CRS005010P0
